Your first diagram
Author, validate, preview, and build a topology from scratch — the loop you will repeat forever.
This walks the whole loop once with a real, working topology. The point is less the example than the rhythm: author → validate → look → build, never skipping the middle two.
Find your icons first
Never invent an icon ID. A wrong one is a validation error, and guessing wastes a round trip:
npm run icons search firewall
npm run icons search "layer 3 switch"IDs look like <pack>/<category>/<name>. This example uses the affinity pack
because it ships with the repo and needs no fetch.
Write the YAML
Create input/branch.yaml:
marrow: 2
name: Branch Office
description: Single-site branch, edge + LAN
theme: dark
hero: core-sw-01
zones:
- id: edge
name: Internet Edge
- id: lan
name: Branch LAN
devices:
- id: edge-rt-01
name: Edge Router
icon: affinity/tile/router
tier: edge
zone: edge
role: WAN edge
mgmt_ip: 192.0.2.1
- id: fw-01
name: Perimeter Firewall
icon: affinity/tile/firewall
tier: edge
zone: edge
mgmt_ip: 192.0.2.2
- id: core-sw-01
name: Core Switch
icon: affinity/tile/switch-multilayer
tier: core
zone: lan
mgmt_ip: 10.0.0.10
interfaces:
- name: Gi1/0/1
description: uplink to firewall
vlan: 10
- id: acc-sw-01
name: Access Switch
icon: affinity/tile/switch
tier: access
zone: lan
- id: srv-01
name: File Server
icon: affinity/tile/server
tier: endpoint
zone: lan
status: degraded
note: Disk array rebuilding
links:
- from: edge-rt-01:Gi0/0
to: fw-01:eth1
kind: fiber
speed: 1G
- from: fw-01:eth2
to: core-sw-01:Gi1/0/1
kind: fiber
speed: 10G
- from: core-sw-01:Gi1/0/10
to: acc-sw-01:Gi0/48
speed: 1G
- from: acc-sw-01:Gi0/1
to: srv-01:eno1
status: degradedNotice what's being declared: two zones, a tier on every device, a hero, and one degraded link. Nothing about position.
Validate — every time
npm run validate input/branch.yamlZero errors, or it isn't ready. Warnings are advisory (an unlinked device, an empty zone, a port used twice) — usually worth fixing, never blocking.
When something is wrong you get the line, a snippet, and a suggestion:
input/branch.yaml:14:11 error MRW-E010 Unknown icon
13 │ name: Edge Router
14 │ icon: affinity/tile/rooter
│ ^^^^^^^^^^^^^^^^^^^^
15 │ tier: edge
hint: search for a real id — marrow icons search rooter
did you mean: affinity/tile/router · affinity/symbol/router · cisco/routers/routerFix what it tells you rather than guessing. The full list is in Diagnostic codes.
Look at it
Two ways. A live server that reloads as you save:
npm run devOr a still image, which is what you want when an agent is driving:
npm run snapshot -- input/branch.yaml -o /tmp/branch.pngThen actually open it. Layout problems, unreadable labels, and a story that
doesn't land are all invisible to validate and obvious in a picture.
Build
npm run build input/branch.yaml
# → output/branch.htmlOne file. Double-click it, mail it, commit it to a wiki. It works with the network cable unplugged.
What you got
The built file is not a picture — it's an application:
| Interaction | What it does |
|---|---|
| Drag / scroll | Pan and zoom the stage |
| Click a device | Inspector: role, mgmt IP, interfaces, notes, config |
| Hover a device | Dims everything but its neighborhood |
| Click a link | Kind, speed, LAG, status, notes |

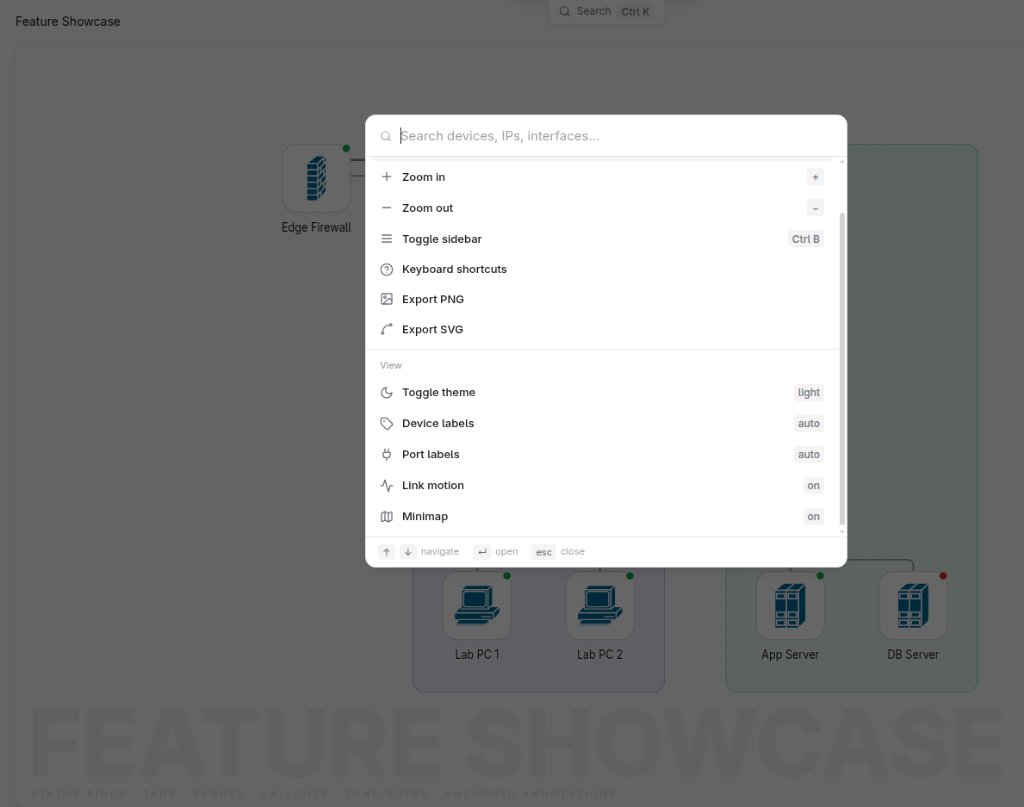

| :kbd[⌘]:kbd[K] | Command palette — search, view settings, export |
| :kbd[⌘]:kbd[B] | Sidebar |
| Export | PNG or SVG, from the sidebar menu |
The status: degraded you set on srv-01 shows as an amber LED on the device
and a dashed amber link. Status is declared, not polled — see
Authoring.
Next
- Live preview — the fast edit loop.
- Zones & tiers — the two keys that shape everything.
- How layout is chosen — why your diagram looks the way it does.
